PROGRAM

NORTH ARROW BLACK.png

The North Subiaco Iconic development includes 12 luxury residential apartments, which comprise seven 2-bedroom apartments, three 3-bedroom apartments, and two 4-level penthouse suites.  Each apartment is unique in design, and as you ascend higher in the building, the larger and more luxurious the apartments become!  Ground floor amenities include a human scale designed shopping strip ("The Gorge"), which boasts a supermarket, medical centre, child care centre, physiotherapist, sports shop, bike shop, beauty salon, day spa, gym, sauna, two restaurants and two bars.  Bike storage is included on the ground level to enable residents to make maximum use of the bicycle path just to the North of the development.

GROUND FLOOR

ground floor plan - with program - assess 4 - v1.jpg

FIRST FLOOR

ground floor plan - first level with program - assess 4 - v2.jpg

LEGEND

1     PLANT ROOM

2     BIKE SHOP

3     PHYSIOTHERAPIST

4     CAFE

5     BEAUTY SALON

6     DAY SPA / MASSAGE

7     SPORTS SHOP

8     CONCIERGE / VALET

9     LIFT

10  FIRE STAIRS

11  BAR

12  POOL

13  THE GORGE

14  BIKE STORAGE

15  SWIM UP BAR

16  SAUNA

17  GYM

18  RESTAURANT

19  CHILDCARE/CRECHE

20  SUPERMARKET

21  MEDICAL CENTRE

GROUND FLOOR ACTIVATION

ground floor plan - ground floor activation diagram - assess 4 - v1.jpg
NORTH ARROW BLACK.png
render 16 - south stairs and boulevard alley 3.jpg

SOUTH STAIRS ENTRANCE AND BOULEVARD ALLEY

render 27 - ground floor lobby south side 1.jpg

SOUTH LOBBY ENTRANCE AS VIEWED FROM T021

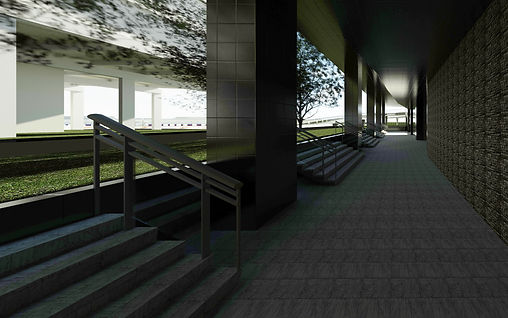

render 25 - ground floor west 1 - brightness adjusted.jpg

GROUND FLOOR WEST

render 23 - ground floor anubi and train station 3.jpg

GROUND FLOOR NORTH  WITH CONCIERGE ENTRANCE AND ANUBI

TWO BEDROOM APARTMENTS

plan - typical two bedroom apartment - assess 4 v1.jpg

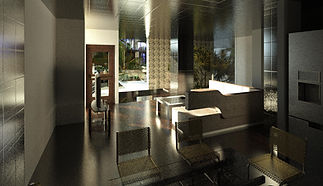

render 15 - two bedroom apartment living area with outdoor 2 storey courtyard 1.jpg

BALCONY/LIVING ROOM

NORTH ARROW BLACK.png
render 13 - two bedroom living area 1 - exposure adjusted 2.jpg
render 2 - 2 BED APARTMENTS - TWO STOREY BALCONY v1.jpg
render 3 - TWO BEDROOM APARTMENTS - TWO STOREY HIGH BALCONY 2 - exposure adjusted 2.jpg

BALCONY

TWO STOREY HIGH BALCONY

DINING/LIVING ROOM

THREE BEDROOM APARTMENTS

LEGEND

1     BEDROOM

2     LIVING ROOM

3     DINING

4     BATHROOM

5     KITCHEN

6     LAUNDRY

7     KITCHEN

8     BALCONY

9     LIFT

10  FIRE STAIRS

11  ROOFTOP

12  POOL

13  THE GORGE

14  PLANT ROOM

15  VOID

16  STUDY

plan - typical three bedroom apartment - assess 4 - v1.jpg
NORTH ARROW BLACK.png
render 19 - 3 BEDROOM APARTMENT - LIVING AREA.jpg

LIVING ROOM

render 21 - 3 BEDROOM APARTMENT - OUTDOOR 2 STOREY BEDROOM 1.jpg

DOWNSTAIRS OF TWO STOREY HIGH MASTER BEDROOM

FOUR BEDROOM PENTHOUSE SUITES

plan - penthouse suite - assess 4 - v1.jpg
NORTH ARROW BLACK.png
render 20 - 4 BEDROOM APARTMENT - LIVING AREA - 2 STOREY HIGH SPACE - exposure adjusted 2.
render 17 - FOUR BEDROOM APARTMENT - LIVING ROOM 1 - exposure adjusted 2.jpg
render 4 - FOUR BEDROOM APARTMENTS - MASTER BEDROOM 3.jpg
render 18 - 4 BEDROOM APARTMENT - KITCHEN AND DINING 3.jpg

MASTER BEDROOM

KITCHEN & DINING

LIVING ROOM

TWO STOREY HIGH

LIVING AREA
